We test and classify the fire behavior of building materials according to the following standards:
| DIN 4102-1 | Fire behavior of building materials and building components – part 1: Building materials |
| DIN 4102-7 | Fire behavior of building materials and building components – part 7: roofings |
| DIN 4102-14 | Fire behavior of building materials and building components – part 14: Floorings and floor coatings |
| EN 13501-1 | Classification of building products and constructions according to their fire behavior, part 1: Classification with the results from the tests on the fire behavior of building products |
| EN 13501-5 | Classification of building products and constructions according to their fire behavior, part 5: Classification with the results from the roof tests in case of fire from the outside |

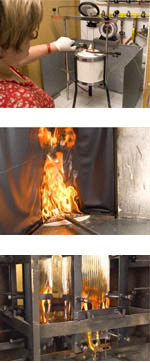

We test in detail:
  |
|
This is how it works::
A proof of usability is required if the building material is used as building product in the sense of the regional building laws (MBPO § 17, paragraph 3).
This proof shall be provided by:
-a general building authority/technical approval or by
- a general appraisal certificate (German abbreviation: abP) or by
- an approval in individual cases

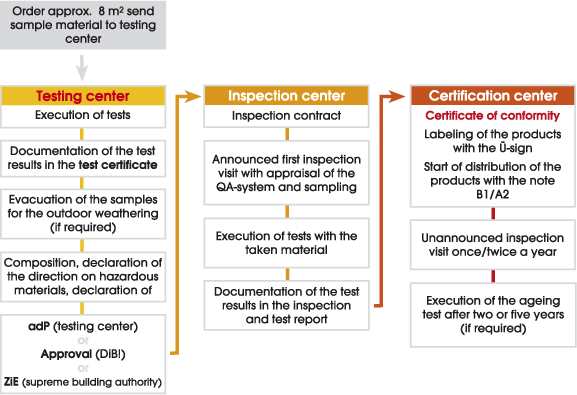

For better understanding, we graphed the flow chart of the testing-, monitoring- and certification process below:
Testing Equipment
Testing Equipment and Sample Size DIN 4102-1
| Test | Sample Size | Criteria |
Brennkastentest (Combustion box/ignition cabinet test) |
90mm x 190 mm (edge test) 90mm x 230 mm (surface test) |
- flame propagation within 20 seconds - burning drop-off |
Brandschachttest (Fire shaft test) |
1.000mm x 190 mm (maximum sample thickness 80mm) |
- destroyed surface - residual length - flue gas temperature Other observations: - Integral of the flue gas evolution - burning drop-off |
DIN-750°C-Oven |
40mm x 50mm stacked up to a sample thickness of 40mm |
- increase of temperature - development of fuel/combustion gases |
| Alternative: Calorific potetial test |
approx. postcard-size sample | 4,2 MJ/kg 16,8 MJ/m2 |
smoke production - combustion accompanied by flames
 |
30mm x 30mm (maximum sample thickness 15 mm) |
15% attenuation of light |
smoke production - decomposition under condition of smouldering  |
270 mm length x 2mm width x 5 mm thickness and/or 270 mm length x 5mm width x 2 mm thickness | 30% attenuation of light |
Testing Equipment and Sample Size DIN 4102-14
| Test | Sample Size | Criteria |
Floor test |
230mm x 1.030mm | - flame propagation - integral of the flue gas evolution |
Testing Equipment and Sample Size for European Tests for the Classification according to EN 13501-1
| Test | Sample Size | Criteria |
Pilot light test according to EN 11925-2 |
90mm x 250 mm (edge and surface test) | - flame propagation within 20 /60 seconds - burning drop-off |
SBI-test according to EN 13823 |
1.000mm x 1.500mm (large sample wing) and 1.000mm x 500mm (small sample wing) |
- FIGRA (fire growth rate) - SMOGRA (smoke growth rate) Other observations: - lateral flame propagation - burning drop-off /drop-out |
750°C-oven test according to EN 1182 |
Cylinder with outside diameter 45mm/height 50mm |
- increase of temperature - mass loss - continuous burning |
Calorific potetial test (Calorimetry) |
approx. postcard-size sample | 2 MJ/kg respectively 3 MJ/kg 1,4 MJ/m•m2 respectively 4 MJ/m•m2 |
| Floor test according to EN 9239-1 (radiant panel) |
230mm x 1.030mm | - flame propagation - integral of the flue gas evolution |
Sample Size for tests of Roofings for the Classification according to DIN 4102-7 or EN 13501-5
| Test | Sample Size | Criteria |
"Roof Test" Resistance against flying sparks and radiant heat DIN 4102-7 or prEN 1187 |
800mm x 1.800 mm (with and without joints) |
- flame propagation on the surface and inside the component - passage of flames through the component |
